Штатна магнітола Mercedes-Benz S-Class (W220) 1998-2005 Most Cyclone C9-011 4×64, DSP

Most Cyclone C9 011 4X64 Premium Infotainment Solution for Mercedes-Benz S-Class

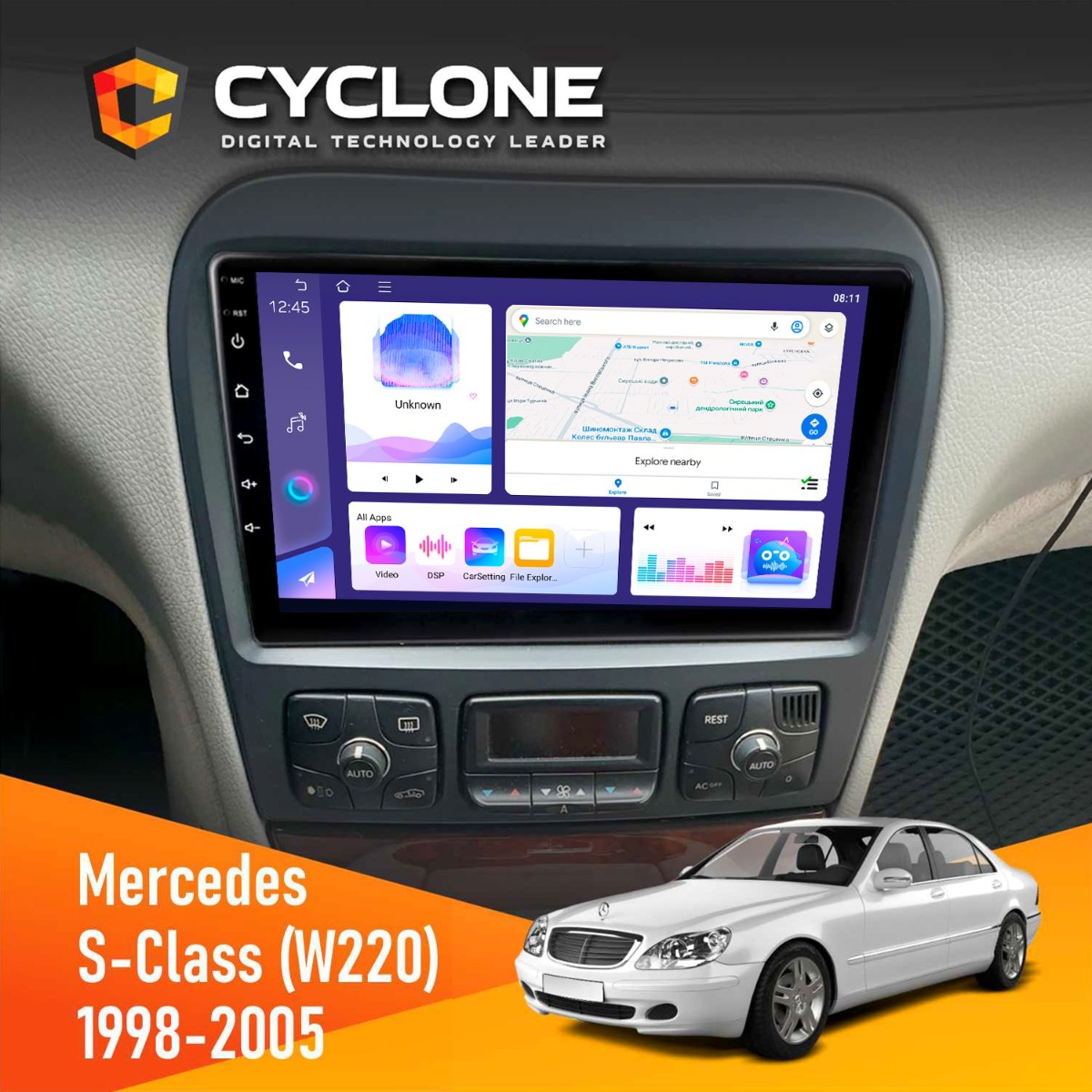

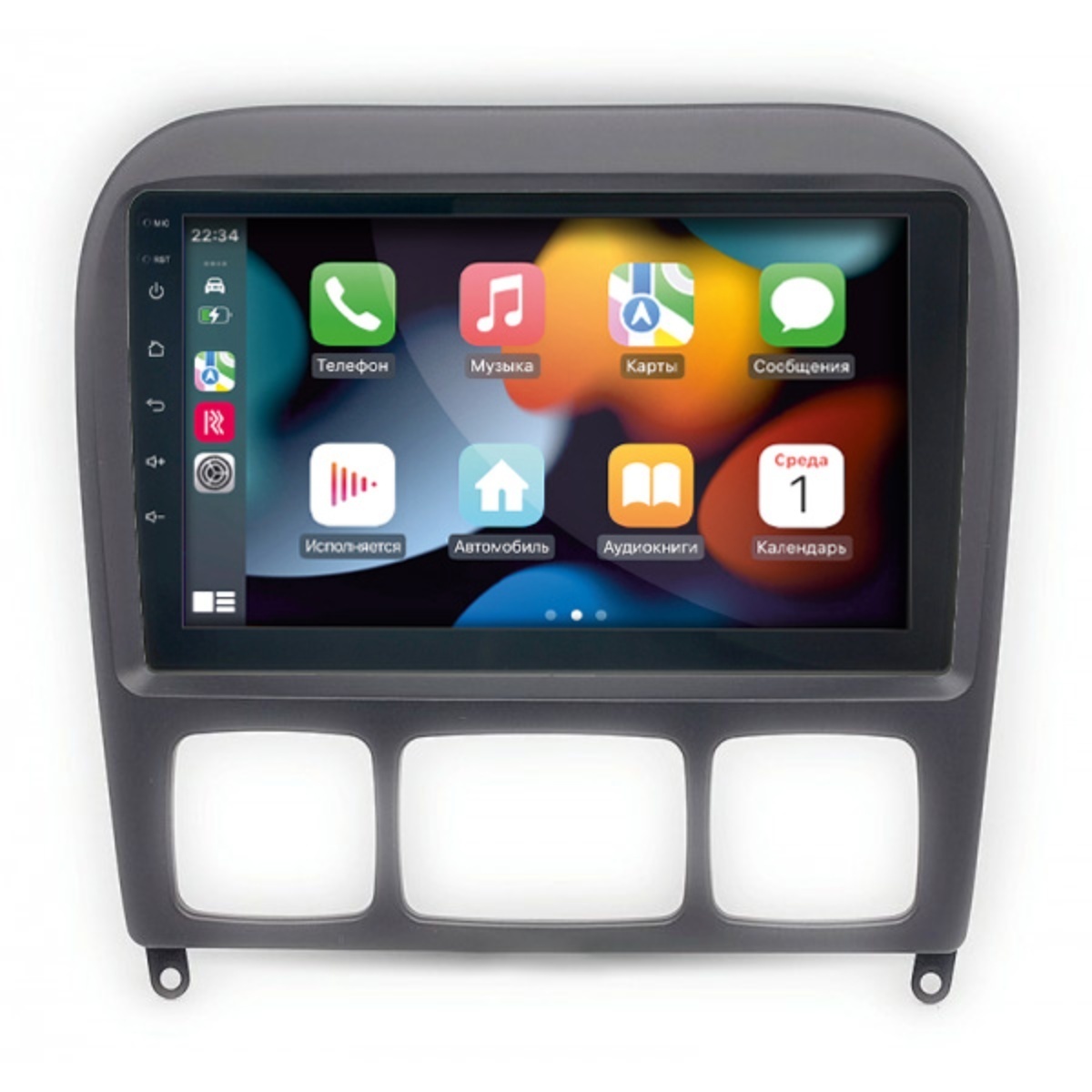

The Most Cyclone C9 011 4×64 is a high-end multimedia center meticulously engineered for the Mercedes-Benz S-Class (W220) 1998–2005, offering a robust upgrade to the factory audio experience. Designed with precision and user-centric functionality, this unit integrates advanced processing power, vivid display, and versatile connectivity into a single cohesive system. It respects the original vehicle architecture while delivering modern expectations for infotainment, navigation, and media playback. The solution is supplied as a complete kit for installation in the factory location, ensuring a cohesive fit and simplified retrofitting. Each component is selected to meet the demands of contemporary in-car entertainment without altering the core vehicle systems.

At the core of this multimedia platform is the Allwinner A133 Plus, 8-core Cortex A53 processor operating at 1.8 GHz, which ensures smooth multitasking, rapid interface response, and reliable performance across extended usage periods. The 9-inch QLED display with 1280 x 720 resolution provides sharp visuals, vibrant colors, and high contrast, making maps, media libraries, and navigation elements easy to read in various lighting conditions. With 4 GB of RAM and 64 GB of storage, the system can handle multiple applications, store music collections, and cache navigation data without noticeable lag, supporting a fluid and uninterrupted user experience.

The unit supports 18 FM and 12 AM radio channels with RDS functionality, allowing for precise station tuning and metadata display. The integrated DSP processor (AK7604) with a 32-band equalizer enables detailed sound shaping, ensuring that audio output remains clear and balanced across the vehicle’s speaker system. Digital audio flexibility is enhanced by an optical SPDIF input, which supports lossless audio sources when paired with compatible external devices. For drivers seeking hands-free operation, the system includes CarPlay and Android Auto mirroring, allowing smartphone integration directly on the 9-inch screen while maintaining access to navigation, messaging, and media apps.

Connectivity is further expanded through 6 RCA line-level inputs (2 front, 2 rear, 2 subwoofer), accommodating a wide range of external audio sources and aftermarket accessories. The inclusion of a dedicated AHD camera input supporting 720P_1080P and CVBS PAL/NTSC ensures compatibility with rear-view camera systems, enhancing safety during reversing maneuvers. The unit also features a 3.5 mm mini-jack for external microphone input, enabling voice commands or karaoke functionality when required. With 4 channels outputting 50 watts each through IC TCB001, the system delivers ample power for driving mid-range speakers and subwoofers, supported by a stable 1280×720 video output configuration for any connected display.

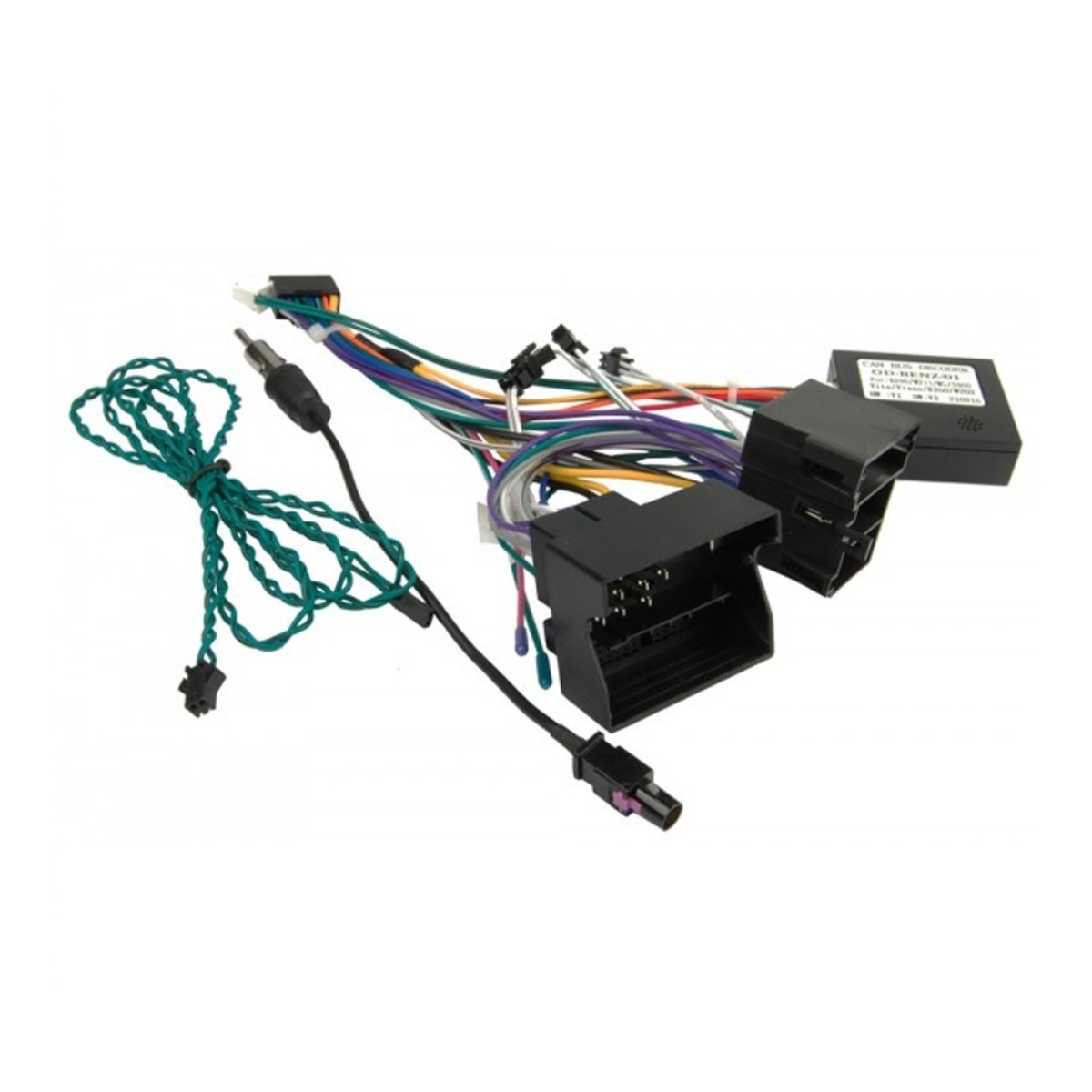

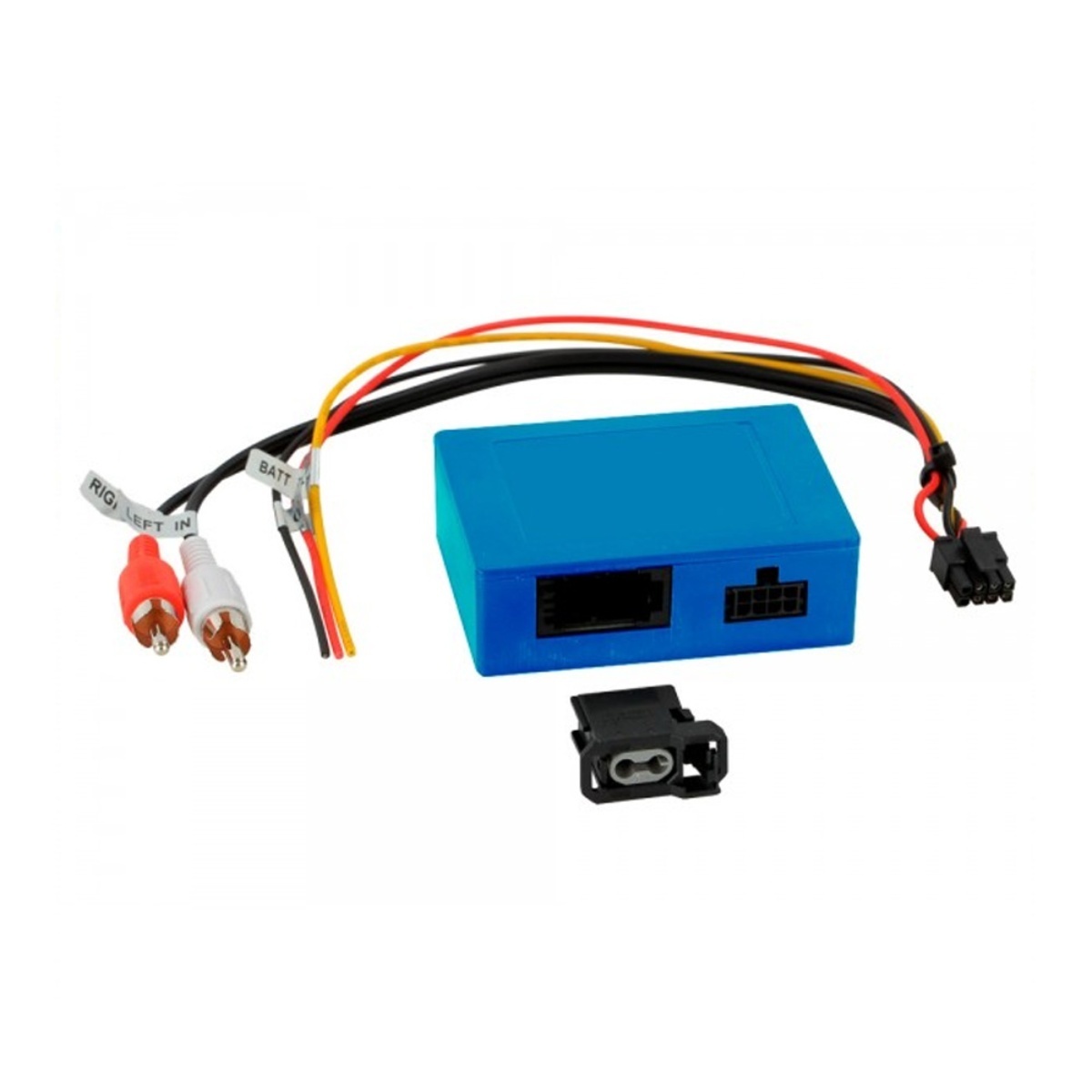

Installation is streamlined through a complete set of included components designed for direct integration into the factory dashboard. The kit contains all necessary wiring harnesses and a CAN Bus interface module, which facilitates communication with the vehicle’s onboard systems, preserving functionality such as steering wheel controls and automatic headlight operation. The presence of a dedicated ISO connector simplifies electrical integration, reducing the need for custom splicing. Users should note that while a coaxial camera input is available, successful operation of the original vehicle camera depends on proper configuration and compatibility verification.

Key Benefits of Most Cyclone C9 011 4X64

• High-performance Allwinner A133 Plus octa-core processor ensures responsive operation and multitasking capability.
• 9-inch QLED display with 1280 x 720 resolution delivers vivid visuals and easy readability in daylight and low-light conditions.
• Comprehensive connectivity including GPS, WIFI6, Bluetooth, 18 FM/12 AM radio, and optical SPDIF for versatile usage scenarios.
• Powerful 4 x 50W output (IC TCB001) supports robust audio reproduction when paired with compatible speakers and subwoofers.
• CarPlay and Android Auto integration allow seamless smartphone mirroring and access to navigation and media apps.
• Complete installation kit designed for factory-fit replacement, minimizing installation complexity and preserving vehicle integrity.

Specifications Overview

Usage Scenarios

This multimedia center is ideal for drivers who wish to modernize their Mercedes-Benz S-Class (W220) with current digital features while preserving the integrity of the factory dashboard. It suits enthusiasts who desire high-fidelity audio playback, reliable navigation, and seamless smartphone integration without replacing the entire head unit. The unit is designed for users who value detailed sound tuning, thanks to the built-in DSP and multi-band equalizer, as well as those who rely on real-time traffic and mapping information through integrated GPS and online services.

For daily use, the 9-inch QLED interface offers intuitive control and visibility, whether adjusting audio settings, browsing music libraries, or viewing navigation routes. The inclusion of multiple RCA inputs makes it possible to connect external processors, amplifiers, or backup cameras, allowing the system to grow with the user’s needs. Because the unit respects the vehicle’s CAN Bus architecture, it maintains compatibility with original vehicle functions, supporting a stable and reliable driving experience.

Care and Maintenance Tips

To ensure long-term performance, avoid exposing the unit to extreme temperatures or high humidity environments, as this may affect electronic components over time. Regularly update connected devices such as smartphones and navigation apps to maintain compatibility and security. When cleaning the screen, use a soft, dry microfiber cloth to prevent scratches and preserve display clarity. Ensure all wiring connections are securely seated to prevent intermittent operation or audio dropouts, especially after initial installation.

When integrating external accessories such as cameras or amplifiers, verify voltage compatibility and signal types to prevent damage. For users who frequently travel long distances, keeping firmware updated can improve system stability and introduce new features. In case of unusual behavior, consult the vehicle’s electrical diagram and the unit’s wiring guide to confirm correct installation before seeking further assistance.

Frequently Asked Questions

1. Is this unit compatible with my Mercedes-Benz S-Class W220?
   Yes, the kit is designed specifically for factory integration with the W220 platform, provided wiring and CAN Bus parameters align.
2. Can I use the original car camera with this head unit?
   Yes, if the camera system supports AHD 720P_1080P or CVBS PAL/NTSC signals and is properly configured, it should function correctly.
3. Does this unit support wireless navigation?
   Yes, built-in GPS provides offline map navigation, and WIFI6 enables faster online map updates and connected services.
4. What audio formats are supported through the digital inputs?
   The optical SPDIF input supports lossless digital audio formats, allowing high-fidelity playback when used with compatible external sources.
5. Can steering wheel controls be used with this unit?
   Yes, the system supports steering wheel control integration, allowing volume adjustment and playback control without reaching for the screen.
6. Is installation suitable for DIY users?
   Yes, the complete kit and ISO connector simplify installation, though electrical familiarity is recommended to ensure proper setup.
7. How does the 32-band equalizer enhance sound quality?
   It allows precise adjustment across multiple frequency bands, helping users tailor audio output to match personal preferences and speaker characteristics.
